Product SKU: APC-CBSW24-LV-KIT

APC 24V LV Swing Gate Control Box Kit

Add Image

    Product SKU: APC-CBSW24-LV-KIT

    APC 24V LV Swing Gate Control Box Kit

    •  In Stock

    Price :

    $490.00 Free Shipping


    • Or in 4 payment of $122.50 with afterpay info

    Product Information

    APC CBSW24-LV Swing Gate Control Box Kit

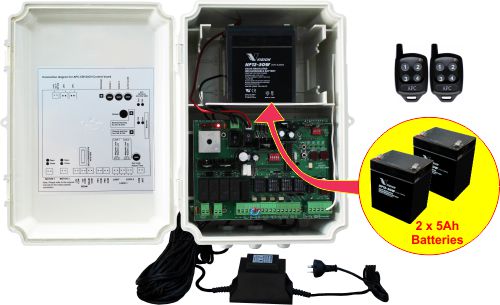

    Control Box Kit Suitable for Low Voltage Powered Single & Double APC Gate Systems, Supplied with APC Control Box, 24V LV Control Board, External Transformer, 2 x 12V 5Ah Back-Up Batteries & 2 Remote Controls


    Please note this product is a replacement control box kit for an existing APC gate automation system. Warranty is only valid when used in conjunction with the APC equipment. No guarantee is given when used for another brand other than the APC brand.

    Control Box Kit Suitable for Low Voltage Powered Single & Double APC Gate Systems, Supplied with APC Control Box, 24V LV Control Board, External Transformer, 2 x 12V 5Ah Back-Up Batteries & 2 Remote Controls


    Control Board Features:

    - 4 Channels built into the control board to allow the following:
    * Channel 1 is for operating a double gate
    * Channel 2 is for operating pedestrian function on a double gate system (opening one gate only) OR operating a single gate system
    * Channel 3 is for operating party mode (to cancel the auto close for a particular cycle)
    * Channel 4 is for operating a second lock (this can operate an extra lock fitted to a stand alone pedestrian gate)
    - Overcurrent adjustment trimmers allows for further adjustment to suit most gate sizes and gate weights.
    - Adjustable auto close timer allowing the user to set auto close up to 3 minutes.
    - The automatic closing can be cancelled using button number 3 when expecting a visitor to arrive through the party mode function.
    - An Electric Lock (power on to unlock) or a Magnetic lock (power off to unlock) can be connected to the control board.
    - Connection of a DC light using up to 20W, this output is active during the opening and will stay active until the gates are closed.
    - Accessories Constant Output: Constant 24V DC output for accessories.
    - Accessories Switching Output: 24V DC output only on the closing cycle to conserve power.
    - PE Safety Sensor connection input: Energy star output, with zero consumption on standby to conserve battery power.
    - Loop Input: Connection of exit wand or loop detector sensor for opening only.
    - PB1 Input: Connection for push buttons, keypads and other access control for single gate operation.
    - PB2 Input: Connection for push buttons, keypads and other access control for double gate operation.
    Please note: Connection of a Magnetic lock, DC light or loop detector/exit wand sensor requires an additional power supply to be used due to the high power consumption.

    Control Box Kit Suitable for Low Voltage Powered Single & Double APC Gate Systems, Supplied with APC Control Box, 24V LV Control Board, External Transformer, 2 x 12V 5Ah Back-Up Batteries & 2 Remote Controls

    Please Note: This APC control box kit is for a Low Voltage Powered Application. For DC Powered & Solar Powered Applications, please see the Control Panels & Control Boards Category.


    Specifications


    AC Input 21-28V AC
    Standby Current Draw 30-40mA
    Frequency 433.92MHZ Secure Rolling Code
    Battery Output 27V
    Accessories Output 24V DC +/-10% 200mA Max
    Contact Inputs Single & Double Gate Open/Close, Single & Double Gate Open Only
    Magnetic Lock Relay (N/C) 12-24V DC Supply Required (500mA Max)
    Pedestrian Lock (CH4) 12V DC 250mA
    Light Output Relay (N/O) 12-24V DC Supply Required (20W Max)
    PE Sensor Input Normally Closed (Voltage Free)
    Loop Detector Input Normally Open (Voltage Free)
    Open/Close Input Normally Open (Voltage Free)
    Electric Lock Output Internally Powered
    Magnetic Lock Output Power Supply Required
    Light Output Power Supply Required
    Motor Output Connection Two wires (including limit switches)
    Control Box Dimensions 290(H) x 225(W) x 180(D) mm


    Package Contents

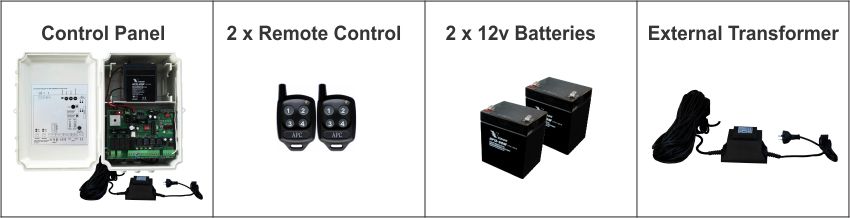

    Control Box Kit Suitable for Low Voltage Powered Single & Double APC Gate Systems, Supplied with APC Control Box, 24V LV Control Board, External Transformer, 2 x 12V 5Ah Back-Up Batteries & 2 Remote Controls
