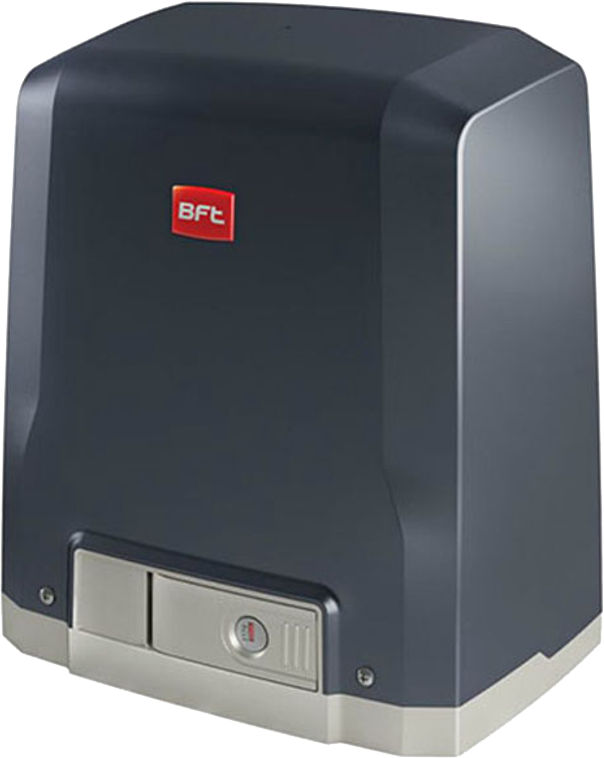

The BFT DEIMOS BT A600 is renowned for its precision, reliability, safety features, ease of installation, and suitability for residential sliding gates weighing up to 600 kg, making it a top choice for home gate automation.

Key Advantages

• Reliable 24V Technology: The motor operates on 24V power, ensuring precise control with fine-tuned opening and closing slowdowns. This technology enhances safety by stopping and reversing the gate when an obstacle is detected, protecting both people and vehicles.

• Strong Performance for Residential Use: Designed for sliding gates weighing up to 600kg, it offers a gate leaf speed of 12 meters per minute, allowing for quick and smooth operation without lengthy waiting times.

• Innovative Torque Management: The integrated microprocessor continually adjusts the motor's thrust based on gate conditions, temperature, and wear. This adaptive torque management prevents false obstacle detection and ensures consistent, reliable performance in all weather and usage conditions.

• Durable and Weather-Resistant: The unit features a protection rating of IP24, making it suitable for outdoor use and withstanding a wide temperature range of -20°C to 55°C.

• Easy Installation and Programming: Installation is simplified with features like an electromechanical physical limit switch for accurate gate positioning and a lever-operated motor release with a personalised key for security. The control unit includes a programming display to facilitate setup, including self-learning and diagnostic functions.

• Innovative Remote Control Cloning: The motor supports secure remote cloning using rolling code technology, simplifying management of multiple remotes while enhancing security.

• Included Accessories: Kits typically come with essential components, such as the motor, gear racks, multiple remote controls, and mounting accessories, making them a complete package for residential installation.

• Optional Features for Flexibility: The motor supports additional options like external transformers for off-grid power or solar compatibility, battery backup kits, and safety sensors such as photocells.

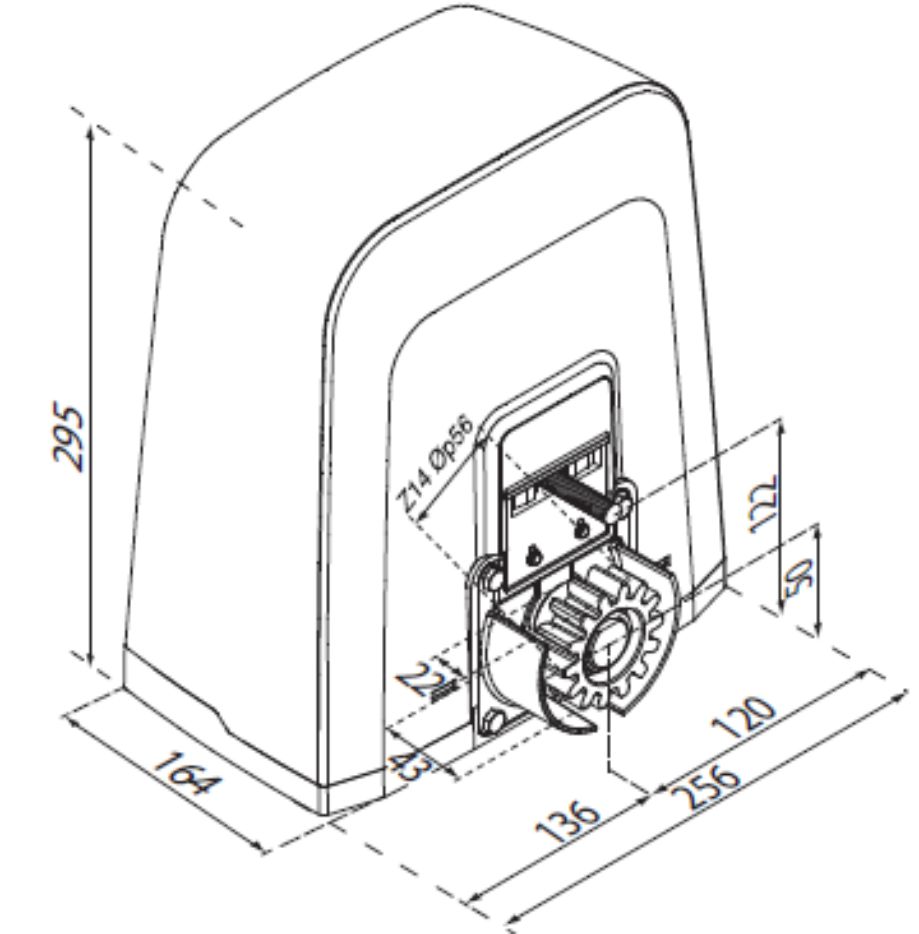

Technical Data of The BFT DEIMOS BT A600

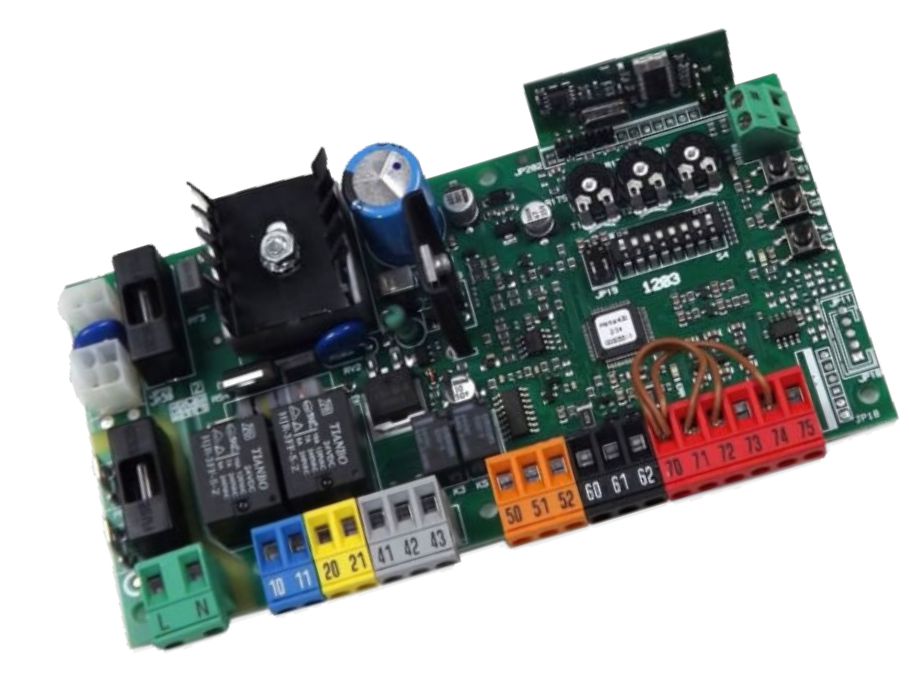

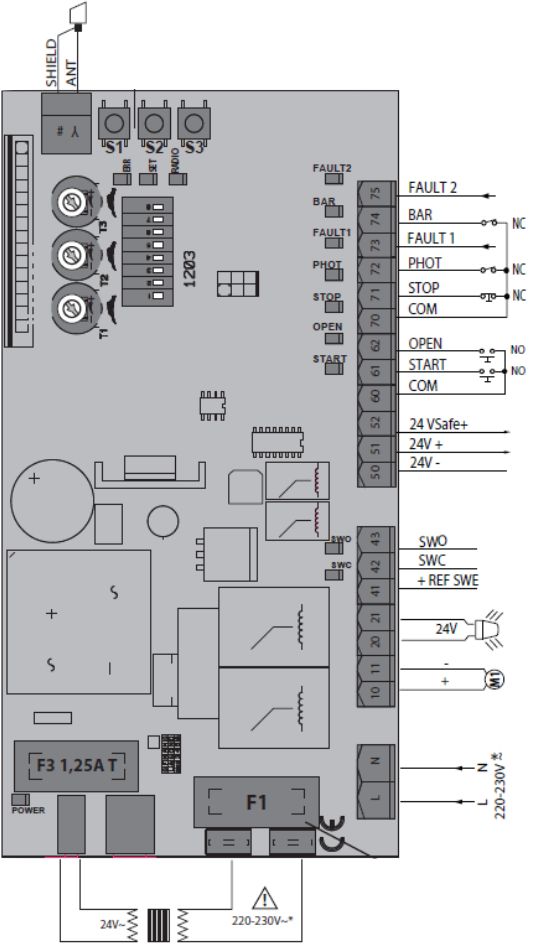

BFT Hamal Ares Control Board For The BFT DEIMOS BT A600

Control panel with trimmer and dip switch for one operator, 230V - 70W

Application: built-in control unit for one 24V operator for BFT sliding gates
Card power supply: 230 V single-phase
Operator power supply: 24V 80W
Main features:
Removable terminal blocks with new standard colour-coding,
Dip-switch programming and potentiometers,
Incorporated a dual-channel receiver,
D-Track anti-crushing system,
Slowdown during opening and closing
Principal functions:
Automatic closing,
Pedestrian opening with remote control only,
8k2 obstruction sensor input (safety feature),
Rapid closure

The BFT Hamal Control Board is a multifunctional and advanced control panel designed for 24V sliding gate operators, offering precise motor control, built-in safety systems, and user-friendly programming with integrated radio receiver capabilities.

Key Features

• Power Supply: Operates on 230V single-phase power, supplying 24V and 80W power to the operator motor, suitable for one sliding gate motor.

• Advanced Motor Control: Provides smooth and precise motor management, including soft start and soft stop, slowdown during opening and closing, accurate positioning, speed adjustment, and torque management to optimise gate movement.

• Safety Systems: Incorporates the D-Track anti-crushing torque management system that helps detect obstacles and prevent accidents. It also supports obstruction sensor inputs (8.2kΩ), emergency stop functions, and protection against motor overload.

• Integrated Dual Channel Radio Receiver: The board has a built-in two-channel radio receiver, allowing easy remote control operation without requiring additional external receivers.

• User-Friendly Programming: Features dip-switch programming with potentiometers and removable terminal blocks coded by standard colour, making installation and adjustments straightforward and efficient.

• Multiple Functionalities:

  • Automatic gate closing

  • Pedestrian opening mode (controlled via remote)

  • Rapid closure function to speed up gate operation if needed

  • Maintenance warnings to help monitor the system’s health

• Compatibility and Expansion: Designed for compatibility with BFT Deimos BT A600, Ares BT A1000, and Ares BT A1500 gate motors. The board supports modular connections for additional components such as buttons, batteries, GSM modules, and smart home system integrations, as well as solar panel compatibility.

• Diagnostics and Monitoring: Provides diagnostic functions to track gate status and troubleshoot malfunctions, ensuring optimal performance over time.

• Durability and Quality: Manufactured in Italy with robust components to ensure reliability and long service life in various operating conditions.

CONTROL UNIT

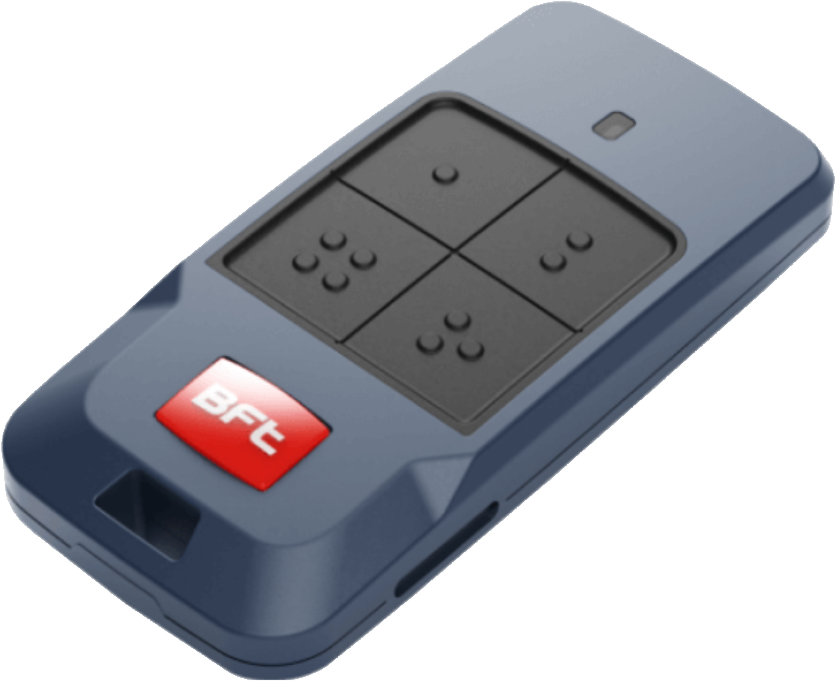

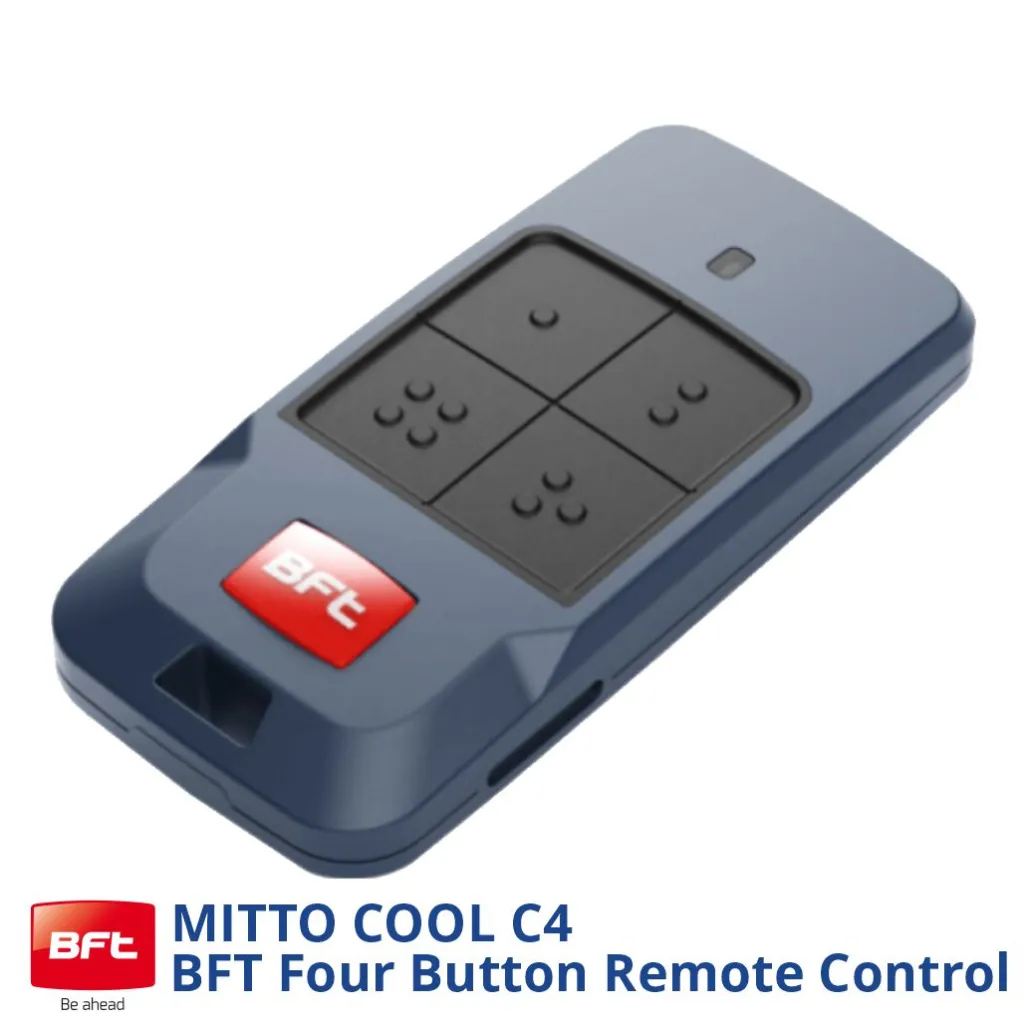

BFT Remote Control MITTO COOL C4

4-Channel transmitter. 50/100 m range. 3V power supply with 1 CR2032 type battery.

Remote control for gates, garage doors and other automated devices, 433 MHz rolling code

Range of remote controls comprising two and four-button models, all with red pin LEDS, available in four colours and with the option of customising the front part. Supports the new U-Security technology and is powered by a widely available 3V pin battery.

Main features

• Incorporates the replay function: this feature is available on all models and series, resulting in fewer codes to manage; you can clone a BFT remote control quickly and easily. You can even do so remotely from your office.

• The four-button, multi-channel remote control: the four-button model can handle up to 8 channels, thanks to the special key combinations. With a single remote control, you can control all your home's automation systems.

• Remote controls can be programmed using an app: insert a remote control into the BFT receiver, and the task is now quick and easy: you can insert and program the remote control without being near the receiver. A solution that saves you time.

• Radio transmission with encryption technology: with the new radio protocol, data is transmitted using a rolling code system and, in addition, this code is masked first with a sophisticated encryption key

Application

The Hamal Control Board is primarily used as a built-in control unit for sliding gates operating on 24V motors, offering efficient and safe gate automation suitable for residential and commercial installations.

This comprehensive set of features makes the BFT Hamal Control Board a reliable and advanced solution for sliding gate automation with enhanced safety, flexibility, and ease of use.

Why Choose the BFT DEIMOS BT A600?

This model is highly regarded for offering Italian-made quality with a focus on ease of use, safety, and strong performance tailored to residential sliding gates. It strikes a balance between power and precision to ensure durability and user safety, while offering convenient programming and remote control options. Customers appreciate its robust build, reliability, and effective torque management, which keeps the operation smooth even with varied gate conditions.

If you have sliding gates up to 600kg and want a dependable automatic opener that emphasises safety, performance, and ease of installation, the BFT DEIMOS BT A600 is an excellent choice for residential use.

This makes it a popular option across Australia and internationally for homeowners seeking quality and value in gate automation.

For full technical specifications or installation guidance, refer to the manufacturer’s manuals and official product pages for detailed support.

Summary: The BFT DEIMOS BT A600 sliding gate motor boasts precise 24V control, smart torque adjustment, quick gate speed (12 m/min), easy installation, and a durable build, making it a standout product.

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack

Interlocking Gear Racks

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

The advantages of nylon racks are that they require no lubrication, are rust-free, and are silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is required for iron racks and involves more machining in the assembly process. GRx2 is high-quality sliding gate hardware for automatic sliding driveway gates.

Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack is nylon coated with steel core, strong and quiet, compatible with all sliding gate automation, and easy to install by DIY.

Modular gear racks kit includes;

2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanised steel.
